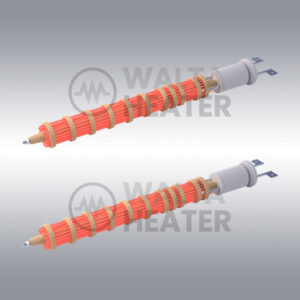

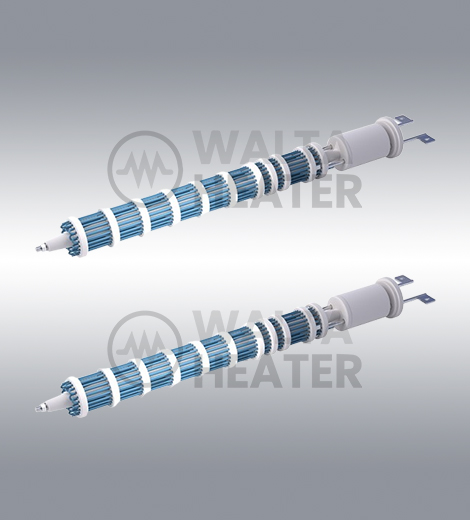

Bundle Rod Heater
The Bundle Rod Heater is a high-performance industrial heating solution constructed with precision-engineered circular or star-shaped ceramic discs. This robust design securely holds the heating elements, ensuring exceptional durability and maintenance-free operation. Our bundle rod heaters deliver significantly higher power density than conventional cartridge heaters. Therefore, they are ideal for demanding thermal applications.
Versatility is key: these heaters function seamlessly as standalone units or within radiant tubes to form a rugged, corrosion-resistant system. Engineered for low-voltage operation, they provide rapid temperature achievement and can be customized with NiCr or FeCrAl alloys. Whether you require horizontal or vertical mounting, the hot and cold zones are fully adjustable to meet your specific furnace requirements.
Key Features of Bundle Rod Heater
- High-Temperature Capability: reliably operates at temperatures up to 1150°C using premium FeCrAl (Kanthal) or NiCr 80/20 alloys.
- Robust Ceramic Support: Uses high-purity alumina ceramic discs (flower, round, or conical design) to prevent element deformation and short circuits.
- Massive Power Range: Scalable power from 1 kW up to 75 kW to suit everything from small lab ovens to massive industrial kilns.
- Flexible Sizing: Fully customizable tube lengths from 300mm to 5000mm and diameters to fit your specific furnace openings.
- Dual Mounting: Engineered for stability in both horizontal and vertical mounting positions.
Advantages of Bundle Rod Heaters
- Longer Lifespan & Reliability: The ceramic spacers prevent the heating wire from collapsing or touching the outer tube, a common cause of failure in older heater designs. This means fewer burnouts and less downtime.
- Rapid Heat Transfer: The design allows for a higher surface area of the element wire, enabling faster heating cycles and quicker recovery times after you load the furnace.
- Easy Maintenance (Plug-and-Play): If an element needs changing, the “bundle” design allows you to remove and replace the heater assembly without removing the radiant tube or shutting down the entire furnace line in many cases.
- Protection Against Corrosion: When used inside a Radiant Tube, the electrical element is shielded from carbon, soot, and corrosive furnace gases, significantly extending its life.
- Energy Efficiency: By optimizing watt density and using high-grade alloys, these heaters convert more electricity into usable heat, lowering your operational costs.
Uses & Key Applications of Bundle Rod Heater:
- Heat Treatment Furnaces: Essential for Annealing, Hardening, Tempering, and Normalizing steel and alloys.
- Carburizing & Nitriding Furnaces: Where atmosphere control is critical (used inside radiant tubes).
- Holding & Melting Furnaces: Maintaining steady temperatures for non-ferrous metals like aluminum and zinc.
- Muffle & Draw Furnaces: Providing clean, indirect heat for sensitive materials.
- Incinerators & Fluidized Beds: Handling waste processing and specialized chemical reactions.
- Roller & Rotary Hearth Furnaces: Providing consistent zone heating for continuous production lines.
